LED & Multiplexed Display Interfacing with Microprocessor

YASH PAL, April 16, 2026May 1, 2026

LED and Multiplexed Display Interfacing with Microprocessor – Display devices are used by the microprocessor-based systems to provide the information from the microprocessor to the external world. Most of the microprocessor-based applications display the letters of the alphabet and numbers to the users. This information can be displayed using different display devices like CRT, LED, LCD, etc. A CRT display is used to display a large amount of information. For a small amount of data display, LED and LCD can be used.

Table of Contents

  • LED Display Interfacing with Microprocessor
  • Multiplexed Display Interfacing with Microprocessor

LED Display Interfacing with Microprocessor

LED (Light Emitting Diode) displays are commonly available in 7-segment format. A seven-segment display, as its name indicates, is composed of seven elements. This type of display is generally used as a numerical indicator and consists of seven LEDs, as shown in Figure 1.

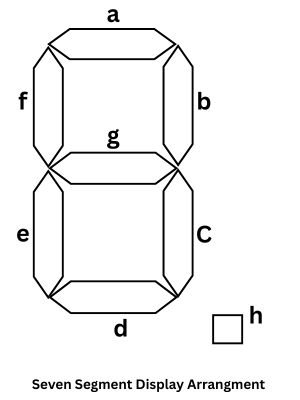

Seven segment display arrangement in microprocessor
Figure 1: Seven-segment display arrangement block diagram

The seven segments of the display are labelled from a to g, and the dot is labelled as h. By lighting up the particular segments, a number or alphabet is displayed. The seven-segment displays are of two types:

  1. Common Anode Type
  2. Common Cathode Type

In a common anode, all anodes of LEDs are connected together, whereas in a common cathode, all cathodes are connected together. An interfacing circuit to drive a single, seven-segment, common anode LED display is shown in Figure 2.

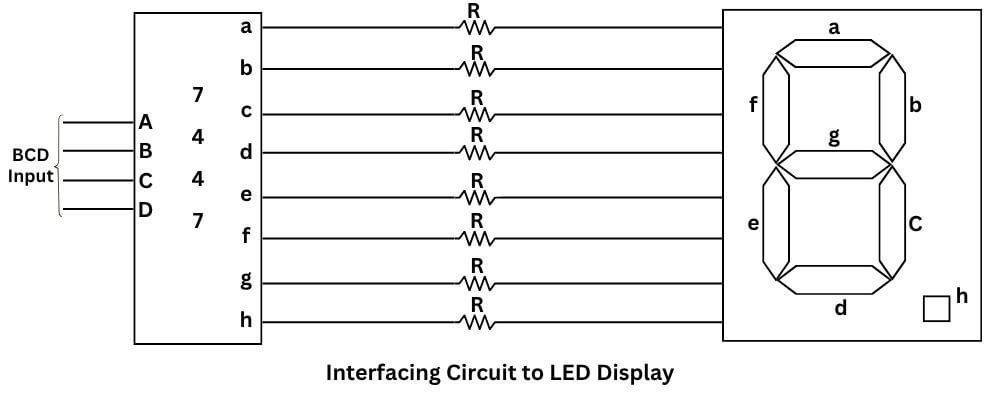

Interfacing circuit to LED Display in microprocessor
Figure 2: LED Display Interfacing Block Diagram

To interface the LED display with the microprocessor, an additional IC (7447-BCD-to-7-segment decoder) is required. The BCD to 7-segment decoder IC 7447 provides the signals on the segments of the LED display. The kind of arrangement to display works properly for just one or two digits. When there are more digits, the power requirements may increase, resulting in a decrease in the LED glow. The another problem which will be there in that each display digit requires a separate BCD to 7-segment decode IC 7447.

Multiplexed Display Interfacing with Microprocessor

To solve the problems that occur with LED displays, multiplexed displays are used. Multiplexed displays are electronic displays where the entire display is not driven at one time. Figure 3 shows the four 7-segment displays connected in a multiplexed method.

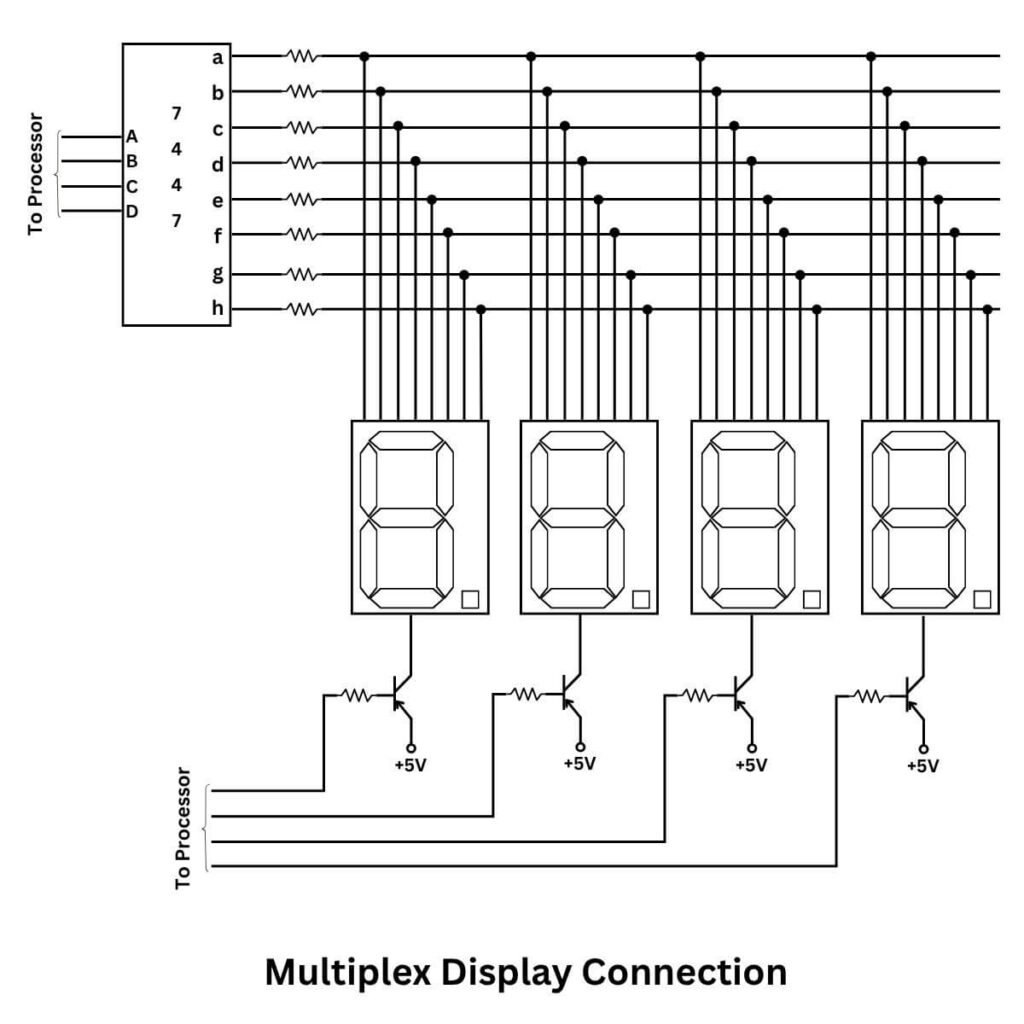

Multiplexed display connection in microprocessor
Figure 3: Multiplexed Display Connection Block Diagram

Figure 3 shows the four 7-segment displays with a BCD to 7-segment decoder. The microprocessor can select one 7-segment display through the transistor circuit. IT means, in a multiplexed display, the segment information is sent for all digits on the common lines, but only one display digit is turned on at a time. In a multiplexed display, the segment current is held between 40mA and 60mA so that they will appear as bright as they would if not multiplexed.
