Control Timing of Instruction Cycle | Computer Architecture

Control Timing of Instruction Cycle – The timing of all registers in the basic computer is controlled by a master clock generator. The clock pulses are applied to all flip-flops and registers in the system, including the flip-flops and registers in the control unit.

The clock pulses do not change the state of a register unless the register is enabled by a control signal. The control signals are generated in the control unit and provide control inputs for the multiplexers in the common bus, control inputs in processor registers, and microoperations for the accumulator.

There are two major types of control organization: hardwired control and microprogrammed control. In the hardwired organization, the control logic is implemented with gates, flip-flops, decoders, and other digital circuits. It has the advantage that it can be optimized to produce a fast mode of operation. A hardwired control, as the name implies, requires changes in the wiring among the various components if the design has to be modified or changed.

In the microprogrammed organization, the control information is stored in a control memory. The control memory is programmed to initiate the required sequence of microoperations in the microprogrammed control. Any required changes or modifications can be made by updating the microprogram in control memory. The block diagram of the control unit is shown below.

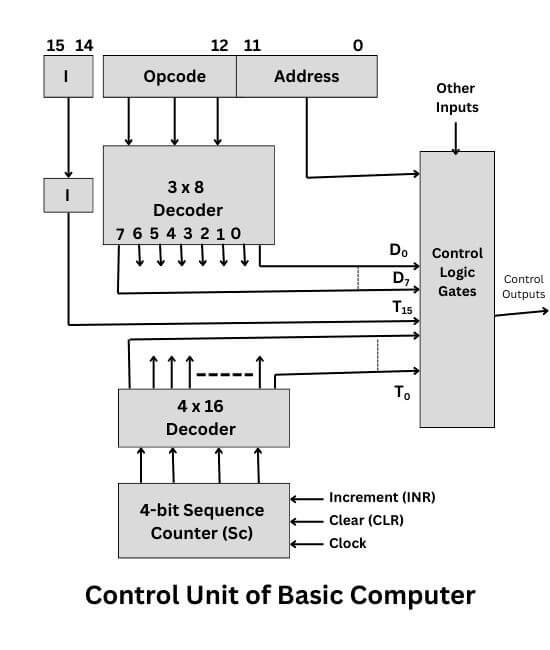

It consists of two decoders, a sequence counter, and a number of control logic gates. An instruction read from memory is placed in the instruction register (IR). The position of this register in the common bus system is indicated in the above figure. The instruction register is shown again above figure, where it is divided into three parts: the I bit, the operation code, and bits 0 through 11. The operation code in bits 12 through 14 is decoded with a 3 x 8 decoder. The eight outputs of the decoder are designated by the symbols D0 through D7.

The subscripted decimal number is equivalent to the binary value of the corresponding operation code. Bit 15 of the instruction is transferred to a flip-flop designated by the symbol I. Bits 0 through 11 are applied to the control logic gates. The 4-bit sequence counter can count in binary from 0 through 15. The outputs of the counter are decoded into 16 timing signals T0 through T15.

The internal logic of the control gates will be derived later when we consider the design of the computer in detail. The sequence counter SC can be incremented or cleared synchronously. Most of the time, the counter is incremented to provide the sequence of timing signals out of the 4 x 16 decoder. Once in a while, the counter is cleared to 0, causing the next active timing signal to be 0.
